technical specifications of d-45sg

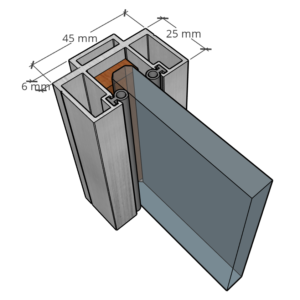

Profile Dimensions
- Width: 45 mm
- Height: 25 mm
- Thickness: 2.5 mm
Glass Connection System & Bonding
- Aluminium/ Clear G2G Seal
- Glass mounting clear adhesive tape
Dimensions
- Glass Thickness: 10, 12 mm
- Maximum Partition Height: 3,000 mm
- Clear Door passage for Single leaf: 700 to 1500 mm
- Clear Door Passage for Double leaf: 1400 to 3000 mm
Gasket
Silicon Based Thermoplastic slide in Gasket
Aluminium
T6 Grade Virgin Aluminium
Sound Reduction Value
32 – 35 dB (depending on type of glass)
